Used RASTER 250/1900 | Stamping Press, H-Frame TYpe

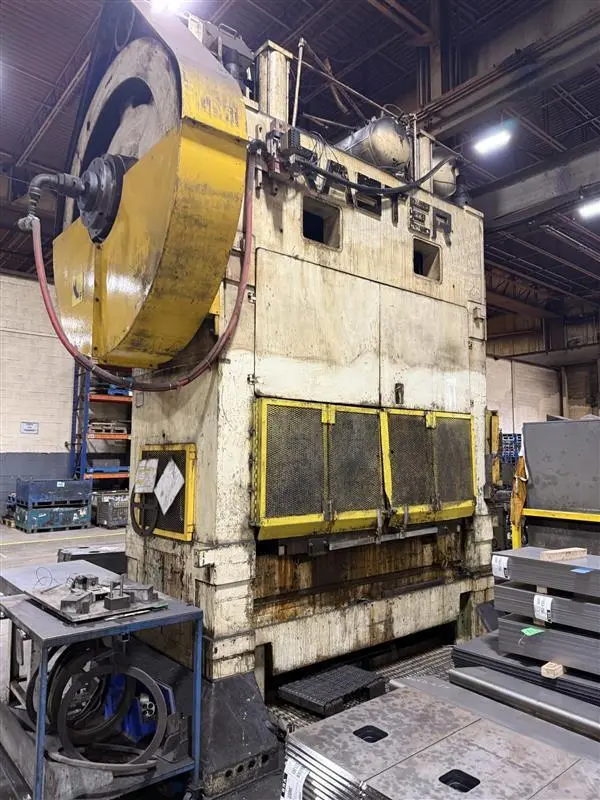

Raster Straight H-Frame Stamping Press, Made in Germany
Model 250/1900NL4S
Year of mfr. 1984
Technical Specifications (Subject to verification)
PRESS FORCES total force (nominal) 250 Tons

PRESS TABLE
table surface (left-right) 2000 mm
table surface (front-back) 1000 mm
opening in bed (left-right) 1700 mm
opening in bed (front-back) 300 mm

RAM
ram force 250 to
table surface (left-right) 1940 mm
table surface (front-back) 800 mm
stroke 85 mm

RAM (MECHAN. PRESS)
ram adjustment 150 mm
automatic. ram adjustment yes
stroke adjustment no
variable speed yes
stroke rate (min.) 30 /min
stroke rate (max.) 150 /min
hydraulic overload protection yes

TOOL ASSEMBLY DIMENSIONS
shut height (stroke down, adjustment up) 450 mm
distance between columns (H-frame) 2200 mm
passline opening (free passage inside columns) 620 mm

DIMENSIONS / WEIGHTS
Left-Right 144” after removing the some covers and fitments.
Front-Back 80”
Height 188”

Total weight approx. 55000 kg
