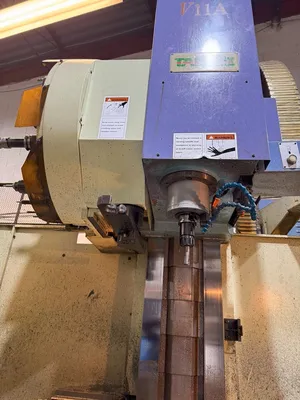

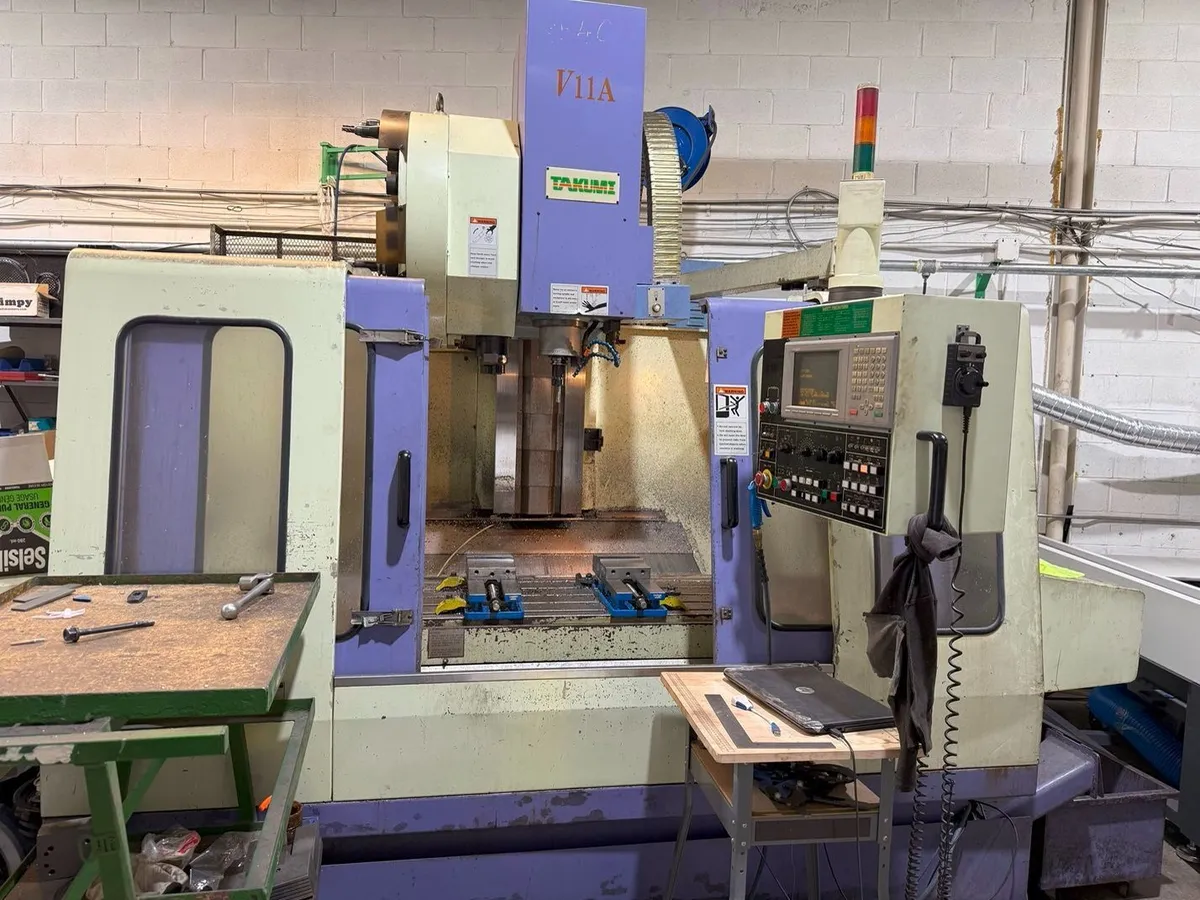

Used 1997 TAKUMI SEIKI V11A | CNC Vertical Machining Centers (VMC)

Takumi CNC Vertical Machining Center, Made in Taiwan
Model: V11A
Year: 1997/08
Control: CNC Mitsubishi Meldas 550
Location: Toronto, ON
Condition: Runs Good and under operation in Tool Room.

Technical Specifications (Subject to Verification)
X-travel : 1100 mm (43.3”)
Y-travel : 550 mm (21.65”)
Z-travel : 560 mm (22”)
Tool taper : BT-40
Spindle motor : 7,5 kW
Feed : 1-4000 mm/min
Rapid traverse : 15/15/12 m/min
Spindle speeds : 6000 U/min
Tool changer : 24
Table surface area : 1350 x 510 mm (53” x 20”)

Electrics : 220 V, 3 Phase, 60 Hz
Power capacity : 20 KVA

Weight of the machine ca : 8 t

Equipped with
• Oil Chiller
• Side Mount Tool Changer
