Used 2021 FAB-CUT HD5x10 | CNC Plasma Cutters

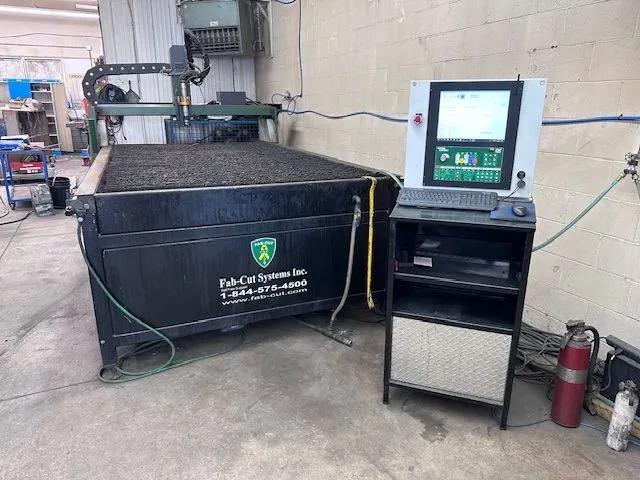

Fab-Cut 40Kw Plasma Table (5’ x 10’), Downdraft Table Type (Made in Canada)
Year 2021
CNC Control: Thermal Dynamics iCNC Performance Control

Technical Specifications (Subject to Verification)

Table Size: 5’ x 10’
Type of Table: Downdraft Table, Water Table.

Power Source Technical Specifications
Make: Thermal Dynamics
Model: Ultra-Cut 200 XT
Power Output Range:
5-200 A
Power Input Ratings
480 V, 3 ph, 50-60 Hz
Output Power
40 kW
Duty Cyle
100% @ 200 A
Open Circuit VDC
425 VDC
Plasma Gas
Air, O2, Ar-H2, N2 @120 psi (8.3 bar) and Ar for marking with automatic gas console
Shield Gas
Air, O2, N2 @120 psi (8.3 bar), H20 @ 10 GPH (0.6 l/min)

Cutting Capacity:
Mild Steel:
Production Pierce: 25 mm (1 in)
Maximum Pierce: 40 mm (1.5 in)
Edge Start: 65 mm (2.5 in)

Stainless Steel:
Production Pierce: 25 mm (1 in)
Maximum Pierce: 25 mm (1 in)
Edge Start: 50 mm (2 in)

Aluminum:
Production Pierce: 22 mm (7/8 in)
Maximum Pierce: 25 mm (1 in)
Edge Start: 50 mm (2 in)

Dimensions L x W x H :
Table Dimensions : L-14’, W-6’ (Aprrox.)
Power Source dimensions : 40.6 x 27.5 x 48 in

Weight
Power Source Weight 205 kg (451 lbs)

Other equipment + Parts:
This is the High-Definition Ultra-Cut 200 XT can cut up to 2.5” thick mild steel See chart below.
Comes with lots of consumables and several cartridges, nozzles for aluminum, SS and mild steel.
