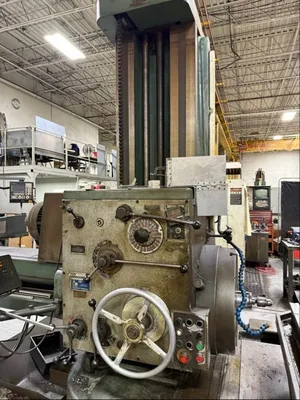

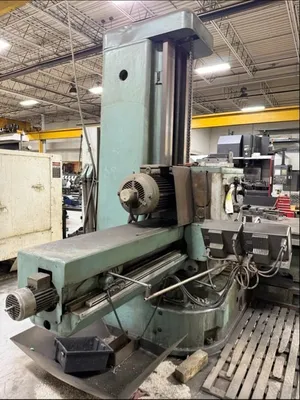

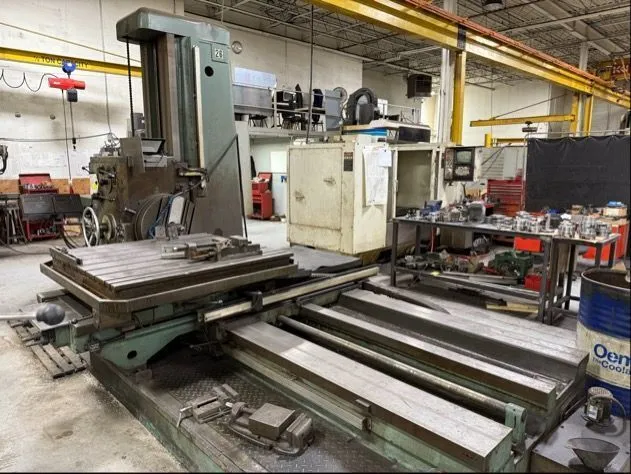

Used 1991 TOS VARNSDORF W100A | Horizontal Table Type Boring Mills

Tos Varnsdorf Horizontal Table Type Boring Mill
Model: W-100A
Year: 1991
Condition: Very Good!
Location: ON, Canada.

Technical Specifications
Spindle size : Ø3.93" (100mm)
Taper : ISO 50
Spindle travel : 35.43" (900mm)
Spindle speed : 1120rpm
Max diameter of face turning : 35.43
Table size : 49"x49" (1250mm X 1250mm)
Table capacity : 6,600lbs
Travels:
X-axis : 63" (1600 mm)
Y-axis : 44" (1100 mm)
Z-axis : 49" ( 1250 mm)
Main Motor : 15hp

Dimensions : L x W x H: 230"x119"x119"
Machine weight : 32,000lbs

Equipped with:
• 3-Axis Heidenhain DRO
• Power Draw Bar
• Tail Stock
• Facing Head
• Inbuilt Rotary Table
• Universal Milling Head
• Hardened Strip Bed Ways
