Used 1998 OLYMPIA H100X60 | Horizontal Table Type Boring Mills

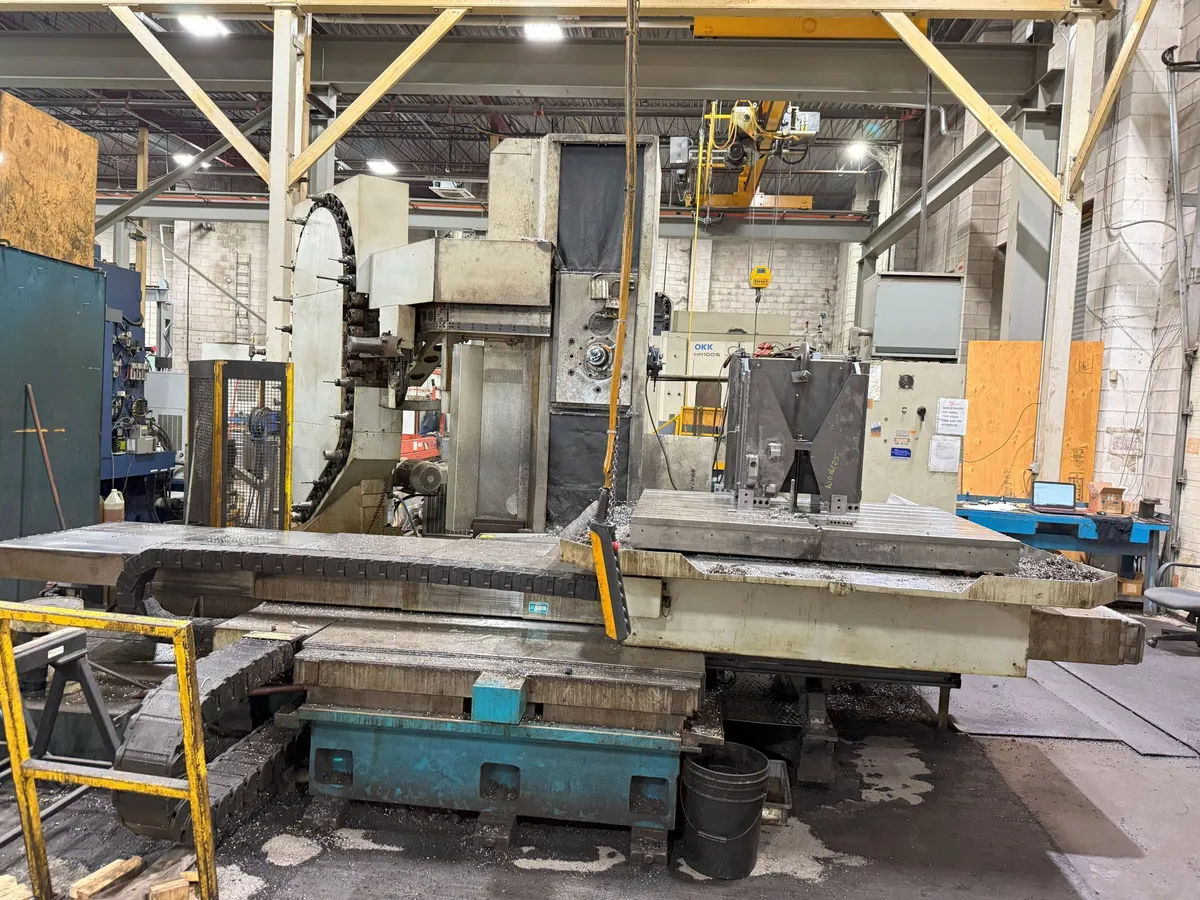

OLYMPIA CNC Table Type Horizontal Boring Mill
Model: H100X60
Year: 1998
Fanuc Control Series I6iM

Technical Specifications (Subject to verification)
Spindle Diameter : 5″
Spindle Inside Taper : ISO 50
Spindle Speed : 4 – 2,500 RPM

Rotary Table Width : 49″ (1250 mm)
Rotary Length : 63″ (1600 mm)
Maximum Table Load : 22,000 lbs
Table Slot Width : .87″ (22 mm)
Number of T-Slots : 7

X-Axis Travel : 98″ (2500 mm)
Z-Axis Travel : 28″ (710 mm)
W-Axis Travel : 39″ (1000 mm)
Y-Axis Travel : 63″ (1600 mm)

Feed Rates (Infinitely Variable): .04-276 IPM (1-7000 mm/m)
Fast Travel Speed: 23 FPM (7000 mm/min)

Maximum Distance Between Spindle End and Table Center: 70″ (1770 mm)
Minimum Distance Between Spindle End and Table Center: 30″ (770 mm)

Equipped with
• Fanuc Control Series I6iM
• Rotary Table
• Automatic Tool Changer, Number of Tools 48

Machine Dimensions (LxWxH): 20′ x 18′ x 15′
Weight: 48,400 Lbs.
