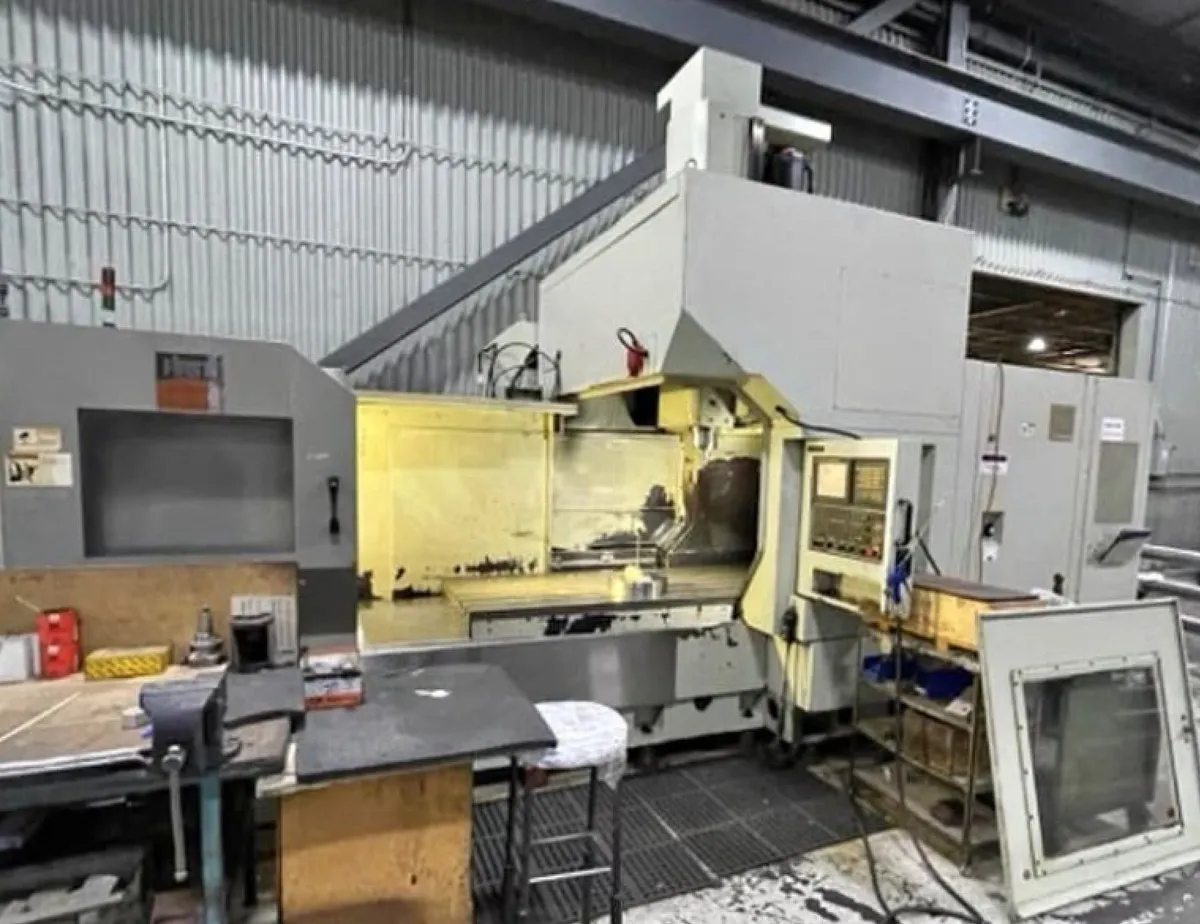

Used 2006 FIRST MCV-2000 | CNC Vertical Machining Centers (VMC)

FIRST CNC Vertical Machining Center
Model MCV-2000
Year 2006
Control Fanuc 18i-MB

Technical Specifications (Subject to verification)
Travels
X-Axis 2050 mm (80")
Y-Axis 1150 mm (45")
Z-Axis 760 mm (30")
Spindle
Spindle Type BT-40
Max. spindle speed 120-15,000 rpm
Spindle motor 20HP (Continuous Rating)
ATC 24
Table
Table size 2200 mm x 1000 mm (86”-39.3")
Max. table loading capacity 3000 kgs (6600 Lbs)

Dimensions Floor area 7,000 x 4,000 mm (23’ x 13’)
Weight 14,000 Kg (31,000 lbs.)

Equipped with
• CNC FANUC Series 18i-MB
• Lift up chip conveyor
• MPG hand wheel
• Spindle Chiller
• Schneeberger linear roller guideways
