Used 2005 ELUMATEC SBZ 122/20 | 3-Axis CNC Routers

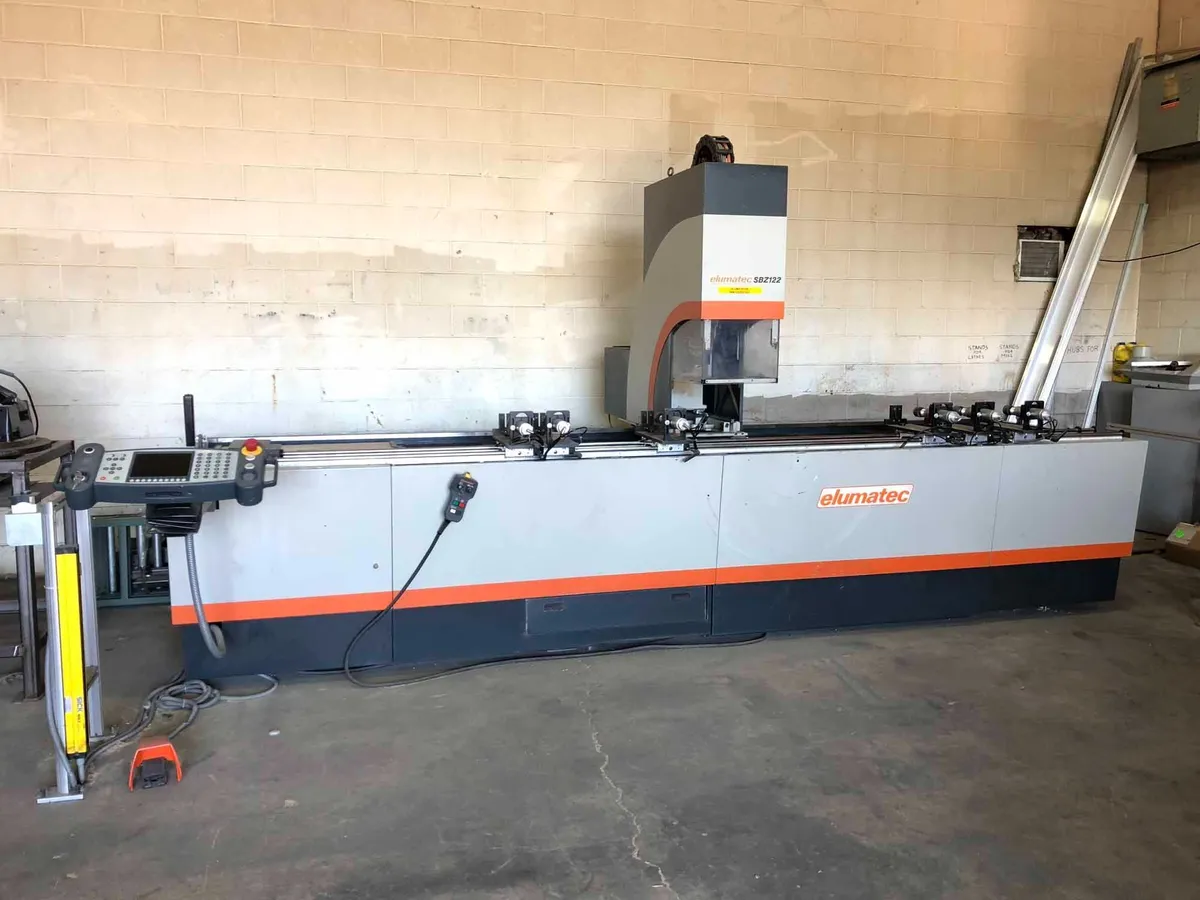

ELUMATEC CNC MACHINING CENTER
Model: SBZ-122/20
Installed in 2005

TECHNICAL SPECIFICATIONS:(Subject to Verification)
Standard Table Area 137.7"
Table Capacity, X-Axis Routing Capacity Face Side 137.7"
Table Capacity, Y-Axis 13.75"
Routing Capacity Top 9"
Routing Capacity Front 7"
Table Capacity Z-Axis 11"
Routing Capacity Top 11"
Step over Capacity 7.3"
Rapid Positioning Y-Z Axes (Max.) 1,176"/Min Rapid Positioning X-Axes (Max.) 1,968"/Min Max. Spindle Speed 21,000 RPM
Power output, Router Spindle 8.1 HP,480 Volt, 3 Phase
Max. Profile Height/Ste Over Max. 11"
Software forced Front/Rear machining no step over from Front to Rear of profile Head runs around Zero point.
Max. Diameter of Tooling 2.4"
Max. Diameter of Disk Cutter
Manual 7.87"
Automatic 3.62"
Max. Air Pressure 102 PSI
Max. Length of Tooling (Top) 7.9"
Max. Dia. Shaft for ER-32 Collet. 78"
Max. Dia. Shaft for ER-16 Collet (Angle head Cap Collet) .511"
Max. Dia. Shaft for 077 Collet .394"
Tapping Capacity up to (w/Float Collet -ER32 Collet size) 0.375" @ 65% Thread Tool Chuck HSK F63 Tool Holder for Auto Tool Change 4 Overall Machine Base Dimensions 62" x49.5"
Light Curtain Width 181.3"L x 88"H
Machine weight (approx.) 3,605 Lbs

EQUIPPED WITH:
• PC Based Control
• Elusoft Software
• Sick Light Curtains
• Machining 3 Sides of Profile
• Linear Guide for X Y Z Travel
• Profile is held by adjustable Pneumatic Clamps Automatic Tool Changer w/4 Top tool Holders & 1 Angle Head Horizontal Pneumatic Clamps Pulse Spray Mist Coolant System Tool Height Gauge
