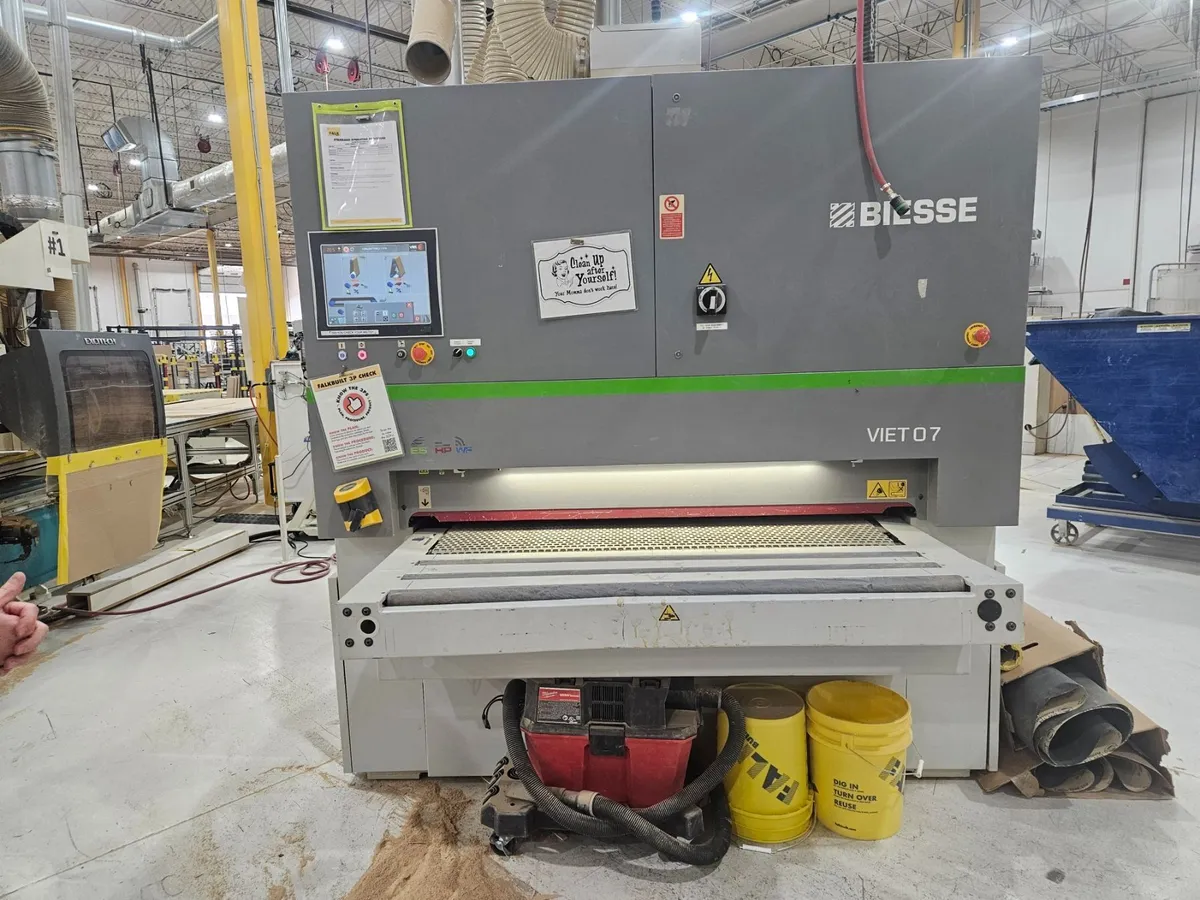

Used 2014 BIESSE VIET OPERA 7-2.3 2620 RF | Woodworking Sanders

Technical Specification:
Grinding width 1.350m x 1.600 m / 53” x 63”
Feed rate 4 - 20 m/min
Workpiece thickness 3 - 200 mm / 0.12” – 7.80”
No. of Wide belt heads 2
Electrics 460V, 3PH, 60Hz
Total Amps 119 A
Weight 6,750 Kg (14,880 Lbs.)
Details:
The high specialization of the Opera 7 series guarantees sanding results far beyond expectations. This configuration enables multifunctional sanding with a wide range of applications such as solid wood sanding, cabinet doors, finish sanding, sealer sanding, veneer sanding.
High-end calibration and finishing wide belt sander. Sanding belt dimension 2620 mm (103 "). Sanding belt width 1380 mm (54"). Constant working table height facilitates the integration of the machine in production lines.
# 1 unit. 20HP motor with automatic Star-Delta system. 40Shore 400 MM (15.75 ") roller with HP system .CSS (Camshaft system) Fan design for cleaning the belt. Electronic anti- device doubling for the sanding drum. Electronic inverter.
# 2 Unit: .20HP motor with automatic Star-Delta system. Viet Patent "Superfinish Electronic Segmented Pad" with 42 sectors. Electronic pressure adjustment .CSS (Camshaft system) Fan design for belt cleaning electronic inverter
Additional features:
• IPC color display with 15 "touch screen.
• Wide selection of operator functions from the control panel.
• Electronic digital readings for automatic thickness.
