Union WMW Floor-Type Horizontal Boring Mill
Have one to sell?
ConditionUsed
1 available

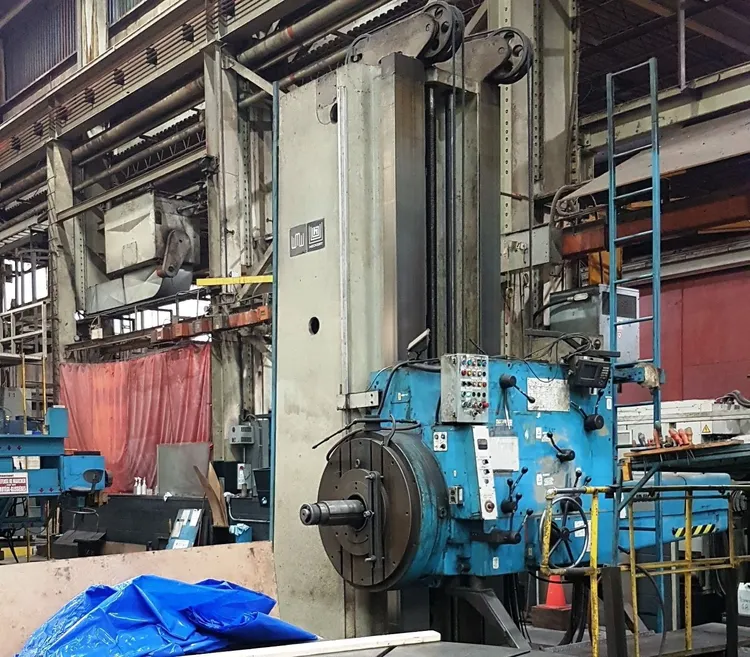

Union WMW BFB-160 Horizontal Boring Mill, floor-type model
Spindle diameter : 160 mm (6.3’’)
Cross travel : (X) 11,500mm 453’’ (37’9’’)
Vertical travel : (Y) 2,800 mm (110’’)
Spindle travel : (Z) 1,400 mm (55’’)
Union WMW floor type horizontal boring mill
Model BFP-160
Technical specifications:
Spindle diameter : 160mm (6.3’’)
Spindle Speed : 2.8 to 560 RPM
Spindle taper : ISO-50
Cross travel : (X) 11,500mm 453’’ (37’9’’)
Vertical travel : (Y) 2,800 mm (110’’)
Spindle travel : (Z) 1,400 mm (55’’)
Minimum spindle-table height: 19’’
Maximum spindle-table height: 133’’
Longitudinal travel (Column) (W): 19’’(to be verified)
Feeds : 0.001’’/revolution to 2’’/revolution
Maximum rapid feeds : 150’’/minutes
Note: Floor plates are available at extra cost
