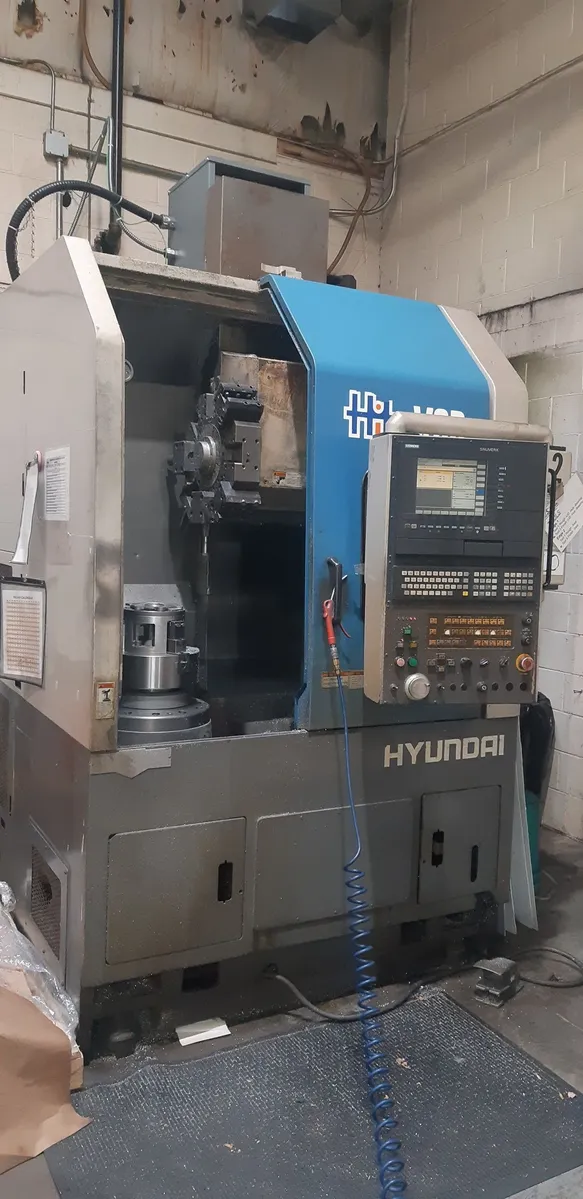

Used 2001 HYUNDAI HiT-V3 | CNC Vertical Turning Lathe

Hyundai CNC Vertical Turning Center
Model HiT-V3
S/N: 3531B2
Manufacturing Year: 8/31/2001
CNC Control: Siemens Sinumerik

Technical Specifications:
Capability
Max. Swing 620mm diameter
Swing on the carriage 430mm diameter
Max. machine diameter 420mm diameter
Max. machine length 420mm
Standard Chuck 12”

Spindle
Main spindle shape ASA A2-8
Main Spindle Taper 1/16
Speed range of main spindle 30-3000 rpm

Turret
Number of equipped tools 8
Diameter inner tools shank 40 mm

Travels
Travelling distance of X-axis 315 mm
Travelling distance of Y-axis 425 mm
Rapid travelling speed of X-axis 20 m/min
Rapid travelling speed of Z-axis 24 m/min

Motor
Main spindle motor 30/22 kW
X-axis motor 3.4 kW
Z-axis Motor 4.7 kW
Hydraulic Motor 1.5 kW

Size of machine
Height 2,720 mm
Area 1,535 x 2,315 mm
Power 47 kVA
Weight 5,800 kg
